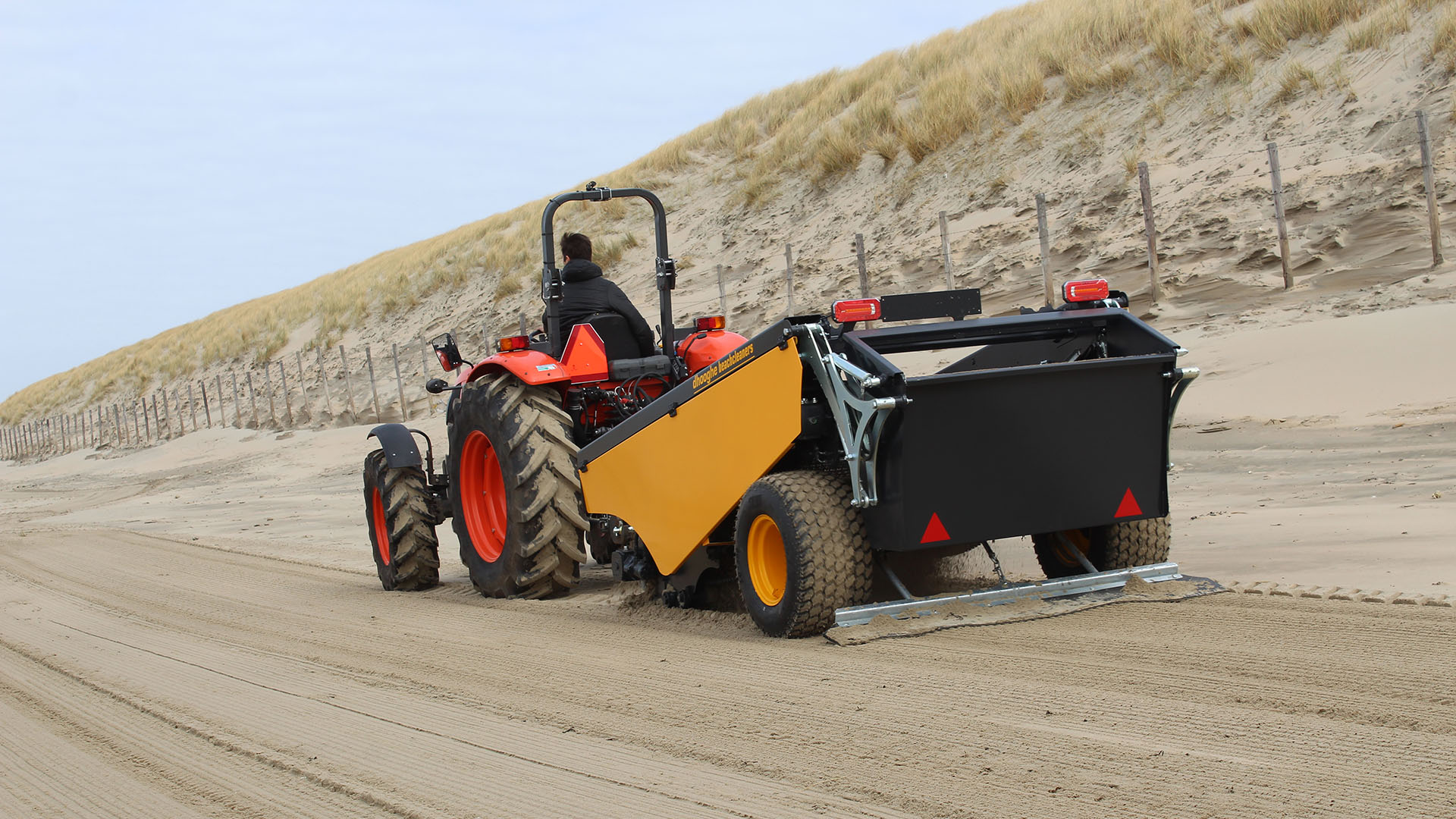

Junior XL

Our most maneuverable and precise construction. Utmost suitable for small - and difficult - beaches.

TECHNICAL DATA

Capacity screen surface               +3.1m2
Operating cleaning width            1500mm
Cleaning depth up to                    0-200mm
Overall length                                4380mm
Width                                              2010mm
Height                                             1480mm
Size of tires                                     31x15.50-15 4pr LG 306 (792mmx391mm)
Weight Circa                                   1480kg
Unloading height                            +2.0m
Hopper capacity circa                     0.75m3
Power take-off shaft speed           max 540rpm
Tractor power                                  55-80 hp
Tractor hydraulics                            2 double-acting circuits min 180 bar
Cleaning capacity                            5000m2/h
Tail light                                           12V/DC LED
Transmission                                    fully hydraulic
Cleaning system                              Unique maintenance-free pick roller particularly suitable for cleaning plastics

Galvanize with standard 2 component painting Yellow RAL 1007 / Grey RAL 7021
Connect to third-point lifting system tractor Hydraulic pump direct to PTO tractor with safety ring
